2 HP 56H Frame Single Phase 1745 RPM WEG Farm Duty Electric Motor

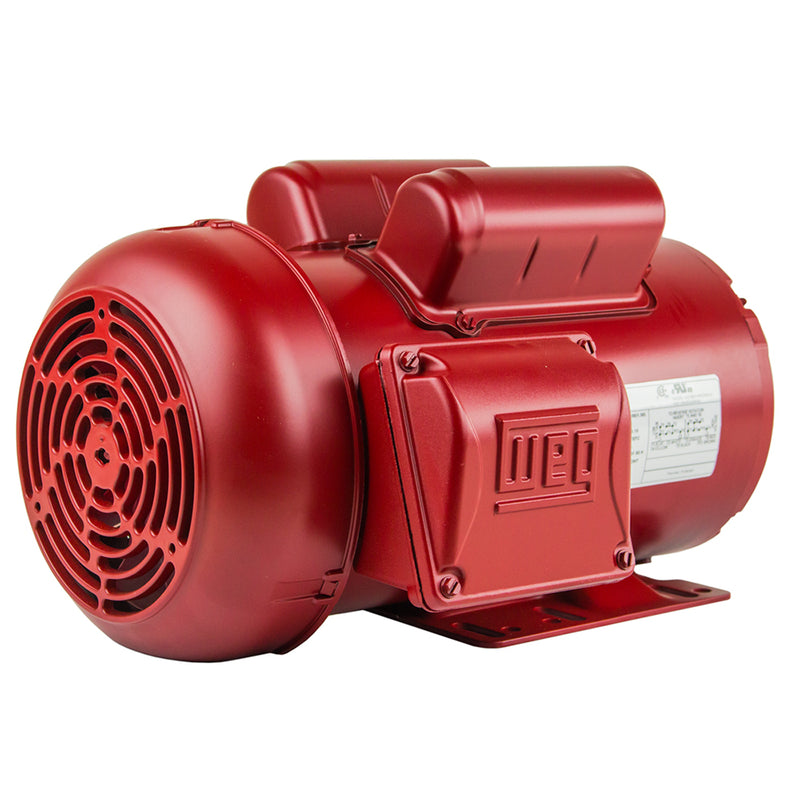

This listing is for a brand new WEG 2 horsepower farm duty air compressor motor model number 00218ES1RFD56H-S, this motor is 115/230 volt, 20.30/10.10 AMPS, 60 Hz, 56H Frame, single phase, 5/8" diameter shaft, and 1745 RPM. This motor is the perfect option for applications that require robustness and high performance in a single product. Because of their high starting torque, they are particularly well-suited for heavy starting loads such as compressors and other equipment. If you have any questions about this motor or if it will work as a replacement on your compressor feel free to contact us.
• Frame: 56H
• Output: 2 HP
• Phase: Single
• Frequency: 60 Hz
• Rated Speed: 1745 RPM
• Rated Voltage: 115/230 Volts
• Rated Current: 20.30/10.10 Amps
• Insulation Class: F
• Temperature Rise: 80 K
• Service Factor: 1.15
• Enclosure: TEFC
• Rotation: Both (CW and CCW)
• Approx. Weight: 48lbs

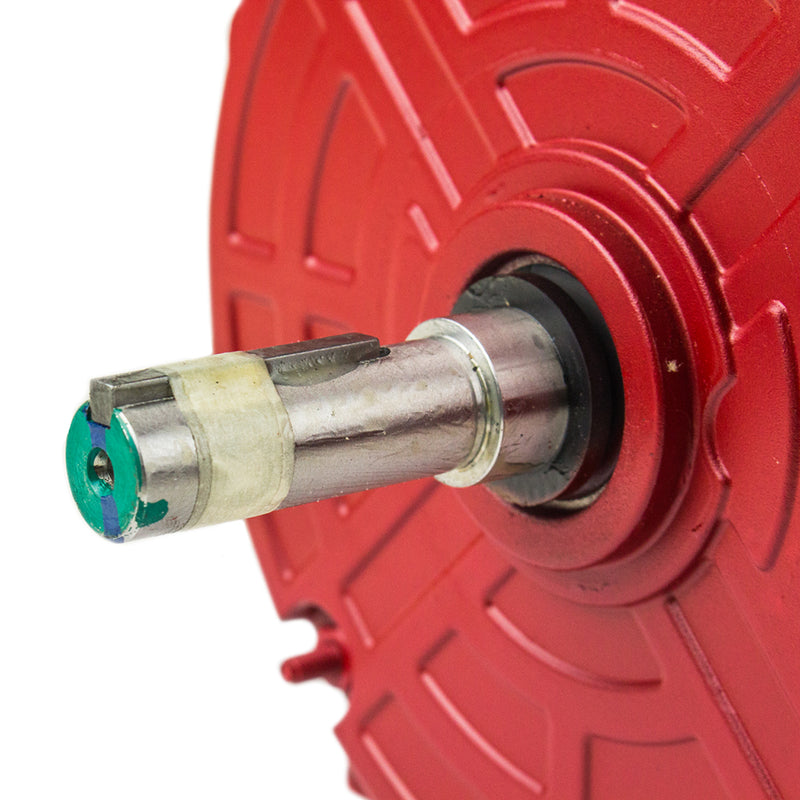

• Shaft Diameter: 5/8" Keyed
• Shaft Length: 2-1/4"
"THIS MOTOR ONLY SHIPS TO THE CONTINENTAL 48 UNITED STATES"
This motor has a 1 year limited manufacturer's warranty
We strive for 100% customer satisfaction! We take the time to package these motors extremely well to make sure they get to you in perfect condition.
If you have any questions about this motor, feel free to reach out to us.
