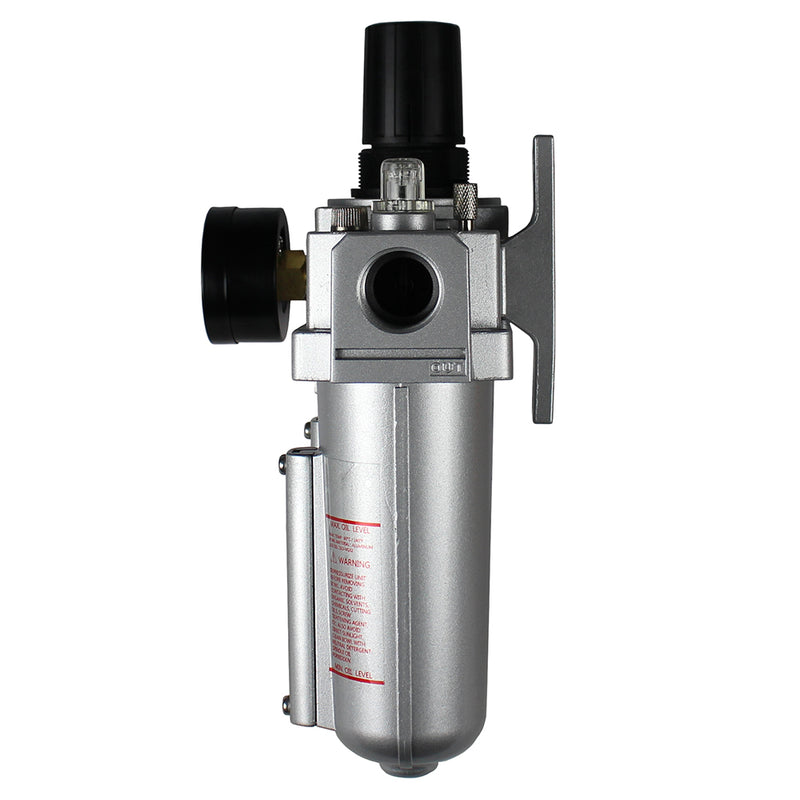

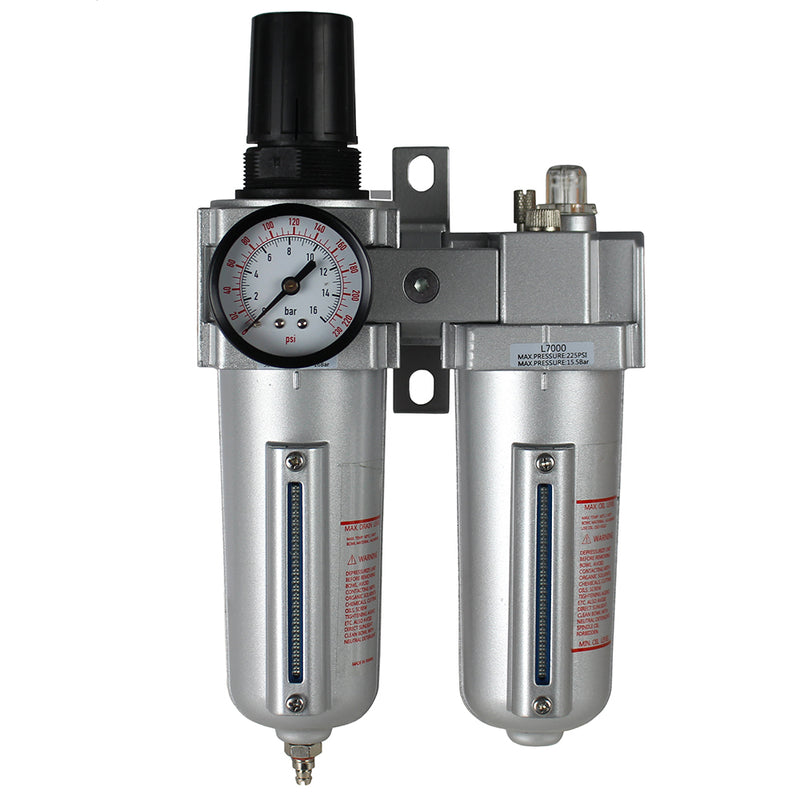

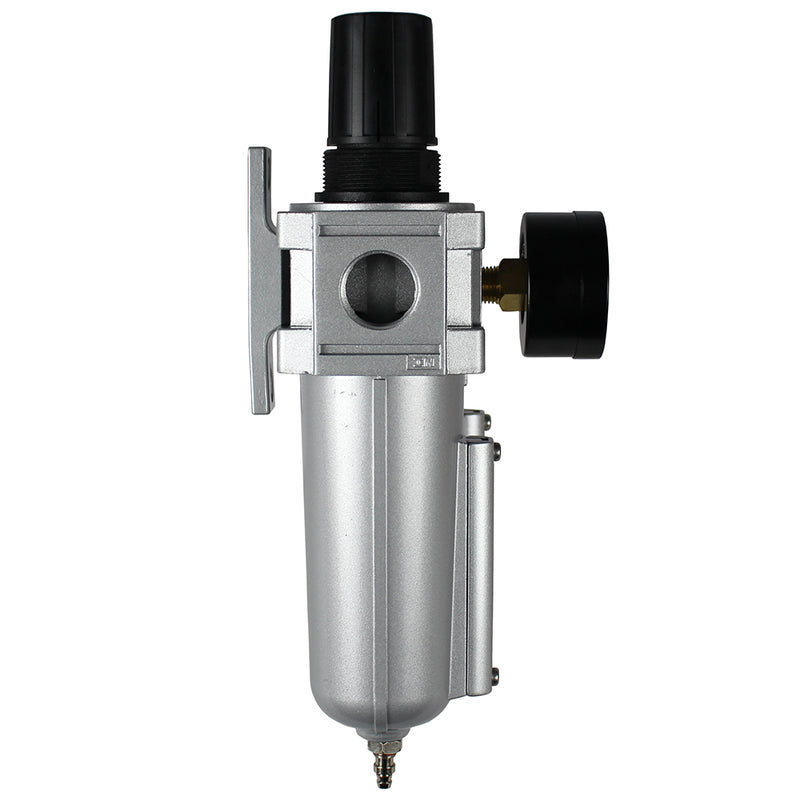

This 3-stage compressed (FRL) filter, regulator, and lubricator combo is built to simplify air management in demanding shop and industrial environments. Designed with 3/4" female NPT inlet and outlet ports, it allows you to regulate pressure, remove moisture, and lubricate tools—all in one compact, space-saving unit. Built-in sight glasses on the moisture and oil bowls let you monitor fluid levels at a glance. The regulator allows adjustment between 7 and 160 PSI, while the 5-micron filter captures debris and water vapor before it can reach your tools. With a max pressure of 225 PSI and a flow rate up to 140 CFM, it’s ready for high-output performance, whether you're in the garage, field, or factory.
Specifications:
• Max Pressure: 225 PSI
• Max Flow Rate: 140 CFM
• Regulator Adjustment Range: 7–160 PSI
• Filter Rating: 5 Micron (2.7 oz bowl capacity)
• Lubricator Capacity: 5.1 oz
• Port Size: 3/4" Female NPT (Approx. 1" thread diameter)

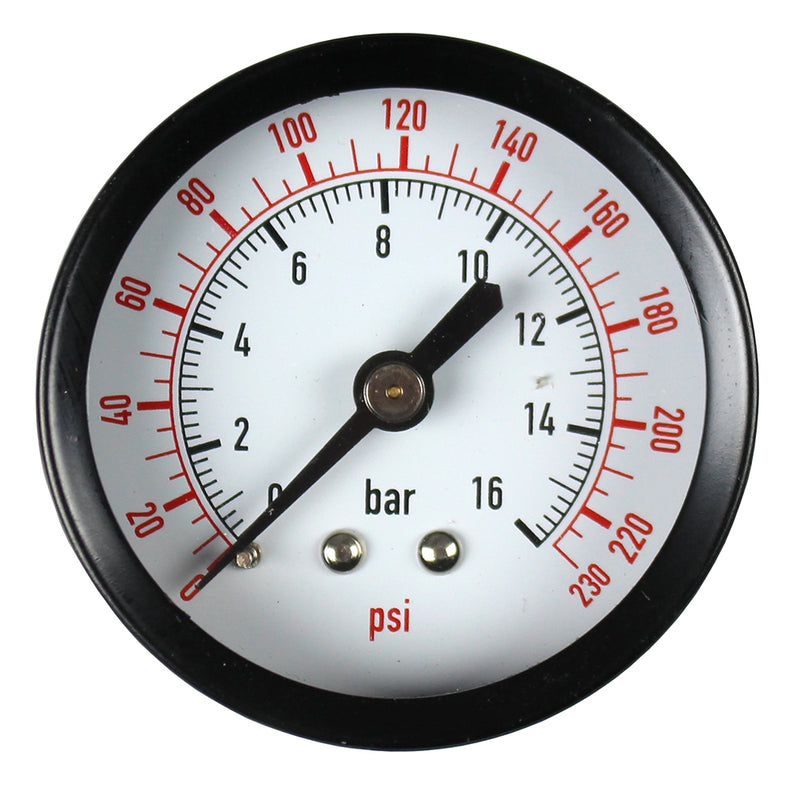

• Included Pressure Gauge
• Compact, Wall-Mountable Design
• Dimensions: 6" L x 3.5" W x 10.75" H
Featured Highlights:
• All-in-one filter, regulator, and lubricator saves space and simplifies your compressed air setup.
• Clear sight glasses on both bowls make maintenance fast and easy.
• Rated for 225 PSI and 140 CFM, ideal for high-demand pneumatic applications.
• 5-micron filtration captures fine particles and moisture, protecting downstream tools.
• Universal 3/4" NPT ports make installation easy in most shop and commercial systems.
