4-5 HP Replacement Single Stage 3 Cylinder Air Compressor Pump

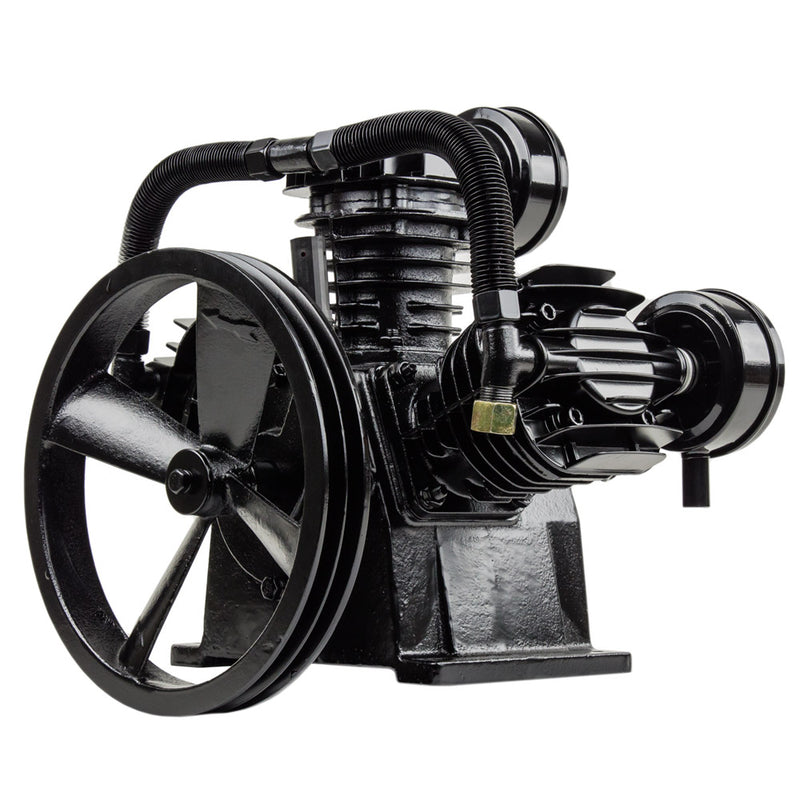

Brand new three cylinder cast iron single stage air compressor pump. This is a 4-5 horsepower pump that will deliver up to 10-12 CFM depending on the RPM. This pump is most commonly used on compressor tanks about 60 gallons in size and can be used with 220-volt 4-5 horsepower electric motors. To verify your motor is large enough, it should be around 17-22 amps at 220 volts. All specifications listed on pump-spec plate are ratings at minimum horsepower and RPM. This pump comes complete as shown in the photos, including intake filters and flywheel. See specifications below for more details.
• Cast Iron Cylinder and Crankcase

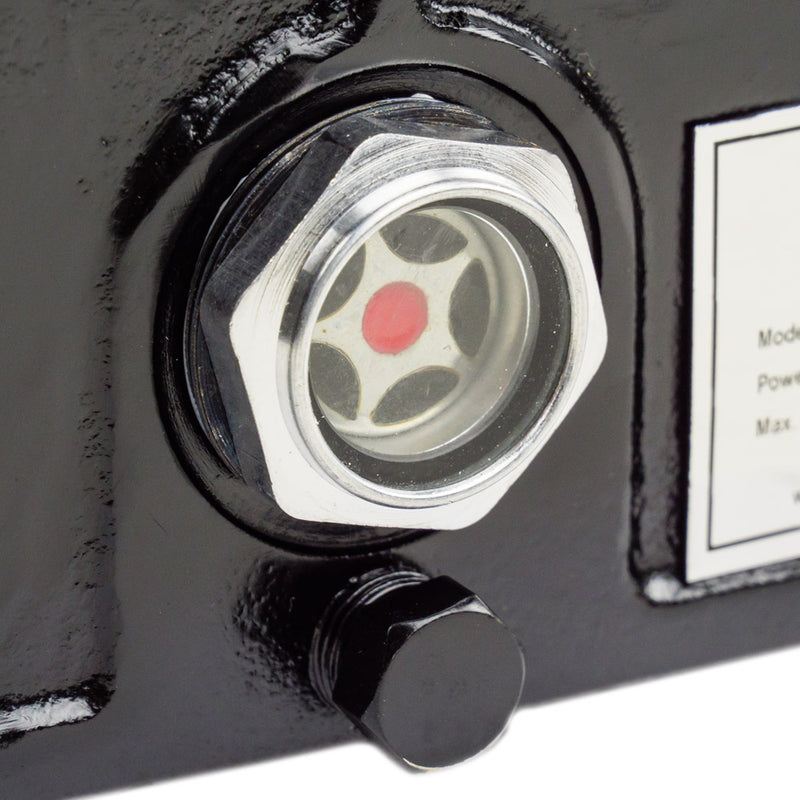

• Equipped with Sight Glass for Easy Viewing of Oil Level
• Comes with Three Intake Filters
• Low Oil Consumption
• Three Cylinder
• Single Stage
• 4-5 HP
• Cylinder Diameter: 65mm
• Maximum Recommended Working Pressure: 115 PSI
• Recommended RPM: 1000-1200
• CFM: 10-12 Max
• Flywheel Diameter: 10.5"
Mounting Hole Dimensions Center to Center
• Front to Back: 5.2"
• Side to Side: 8.43"
