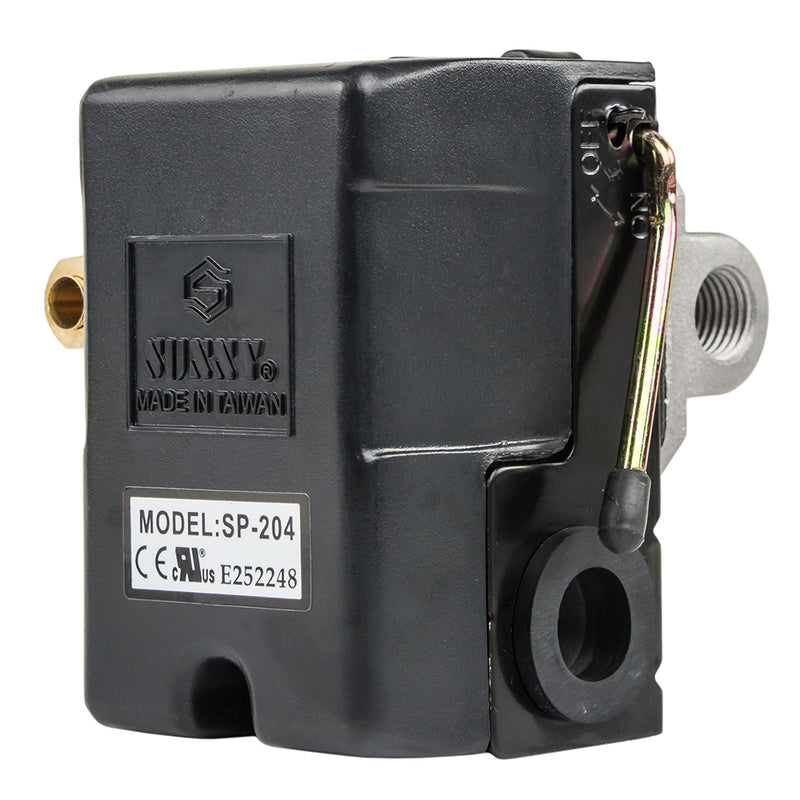

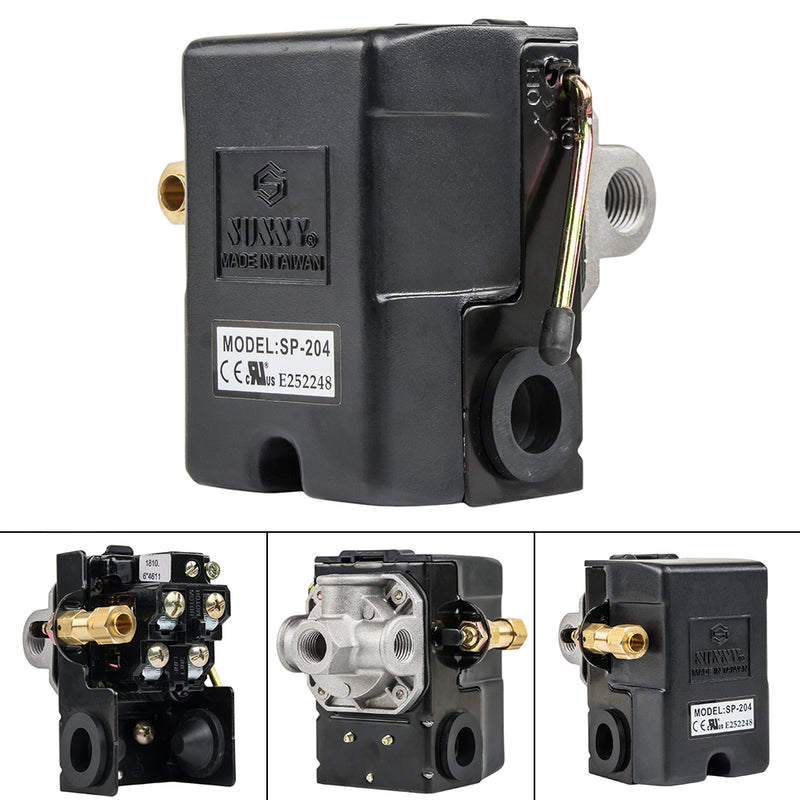

This listing is for a brand new 25 Amp heavy duty air compressor switch. If the switches you have been using are burning out and melting contacts, this is a great high quality heavy duty replacement switch! This switch is rated at 25 Amps at 115V, 230V, and 12V DC power. The switch is set to turn on at 95 PSI and turn off at 125 PSI. The pressure settings are adjustable 30-40+- PSI. This switch comes equiped with and on/off switch and also an unloader valve which can or cannot be used depending on what your compressor calls for. This is a universal switch commonly used as a replacement / upgrade with Furnas, Square D, Sunny, Lefoo, and many more compressors! This will work as long as the pressure settings are correct or close enough to adjust the switch to the exact pressure you use. This switch requires one 1/4" air inlet from the tank. The manifold on this switch features four 1/4" inlet / outlets. We also have single port pressure switches available in our store.
(THIS SWITCH IS FOR COMPRESSORS WITH HIGH AMPS OR WITHOUT A STARTER ALSO FOR SMALLER COMPRESSORS IF YOU WOULD JUST LIKE A GREAT HEAVY DUTY LONG LASTING SWITCH.)

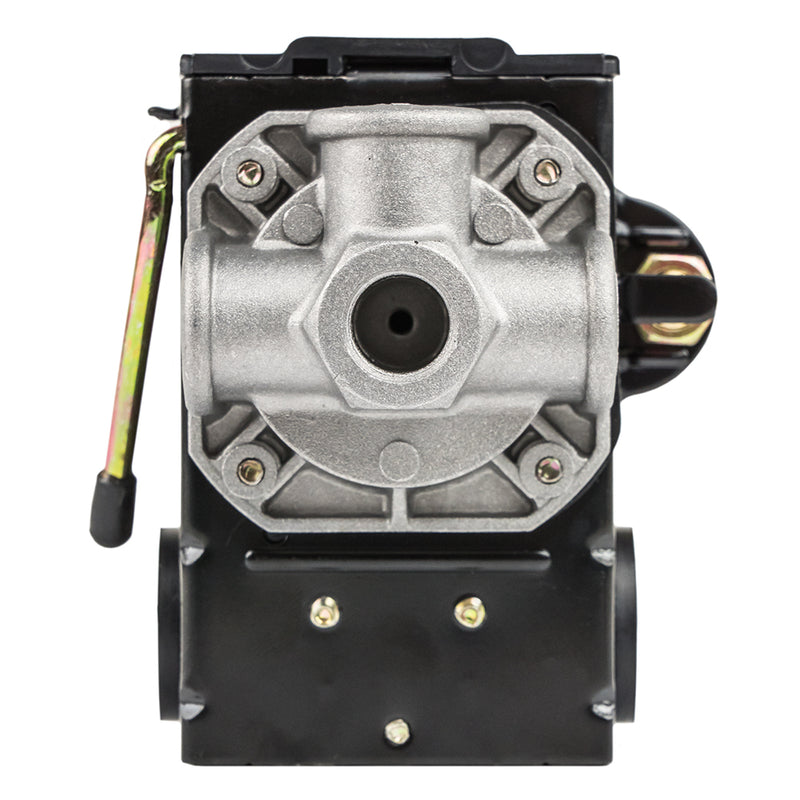

- THIS SWITCH HAS FOUR ¼" NPT FEMALE PORTS. ONE IS ALWAYS USED AS A TANK PRESSURE AIR INLET AND THE OTHER THREE CAN BE USED FOR A GAUGE, RELIEF VALVE, AN AIR OUTLET, OR CAN BE PLUGGED IF THEY ARE NOT NEEDED.

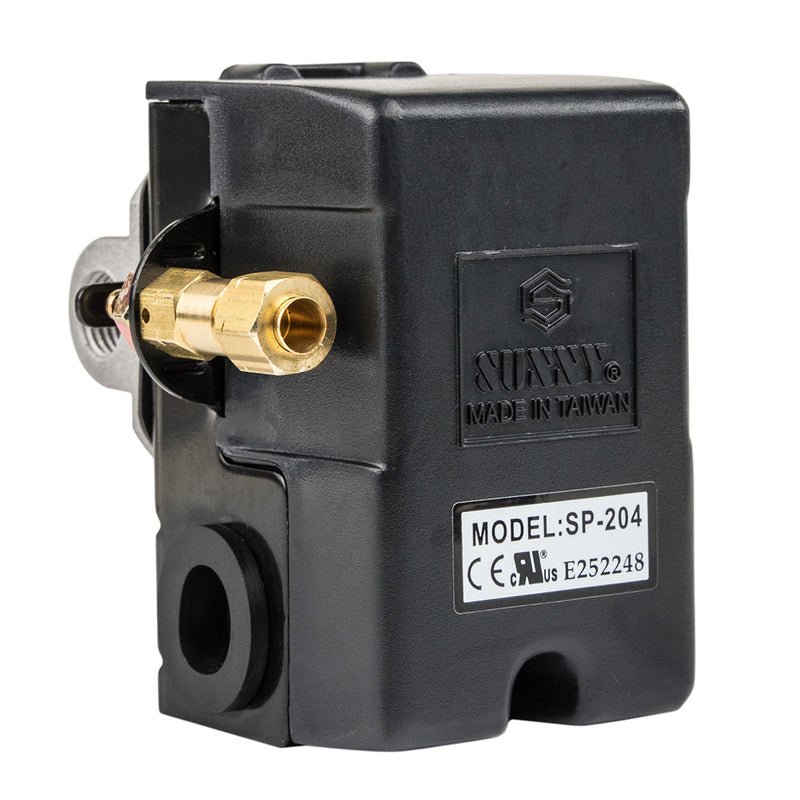

-1 SINGLE 1/4" COMPRESSION INLET FOR UNLOADER VAVLE.
(COMES WITH NEW COMPRESSION NUT AND FERREL)
25 AMP POWER HANDLING AT 115V, 230 VOLT AND DC POWER.
ON AND OFF LEVER ON THE SIDE.
CUT IN PRESSURE: 95 PSI, CUT OUT PRESSURE 125 PSI, ALSO ADJUSTABLE.
