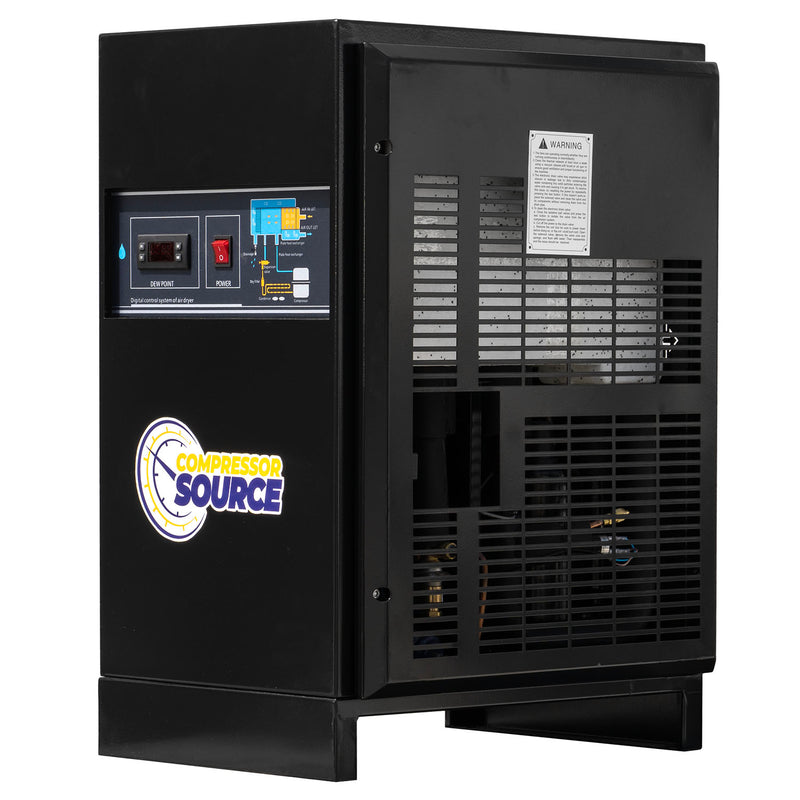

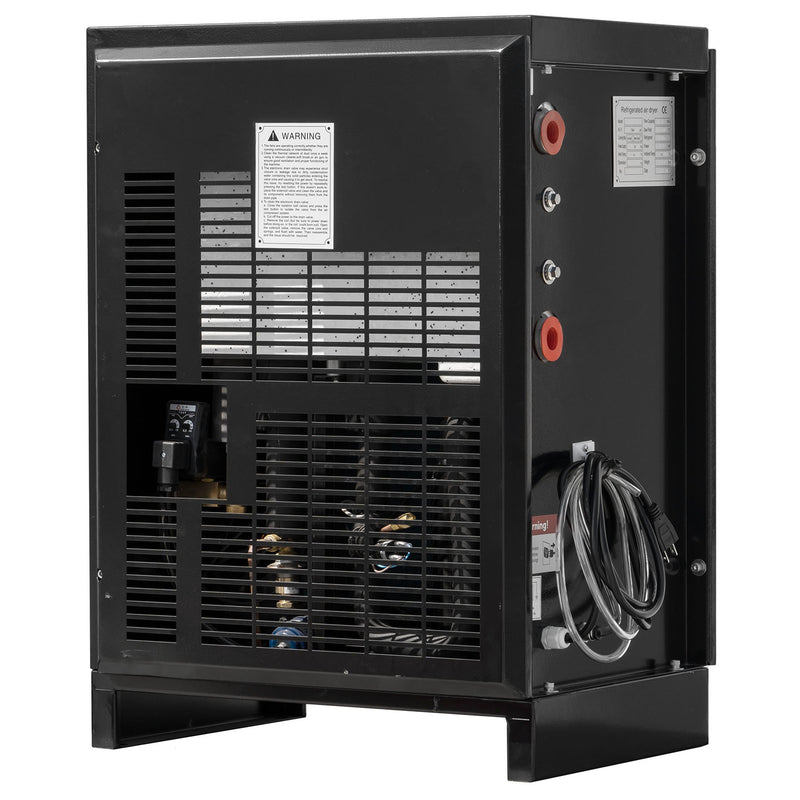

Compressor Source 40 CFM Refrigerated Air Dryer

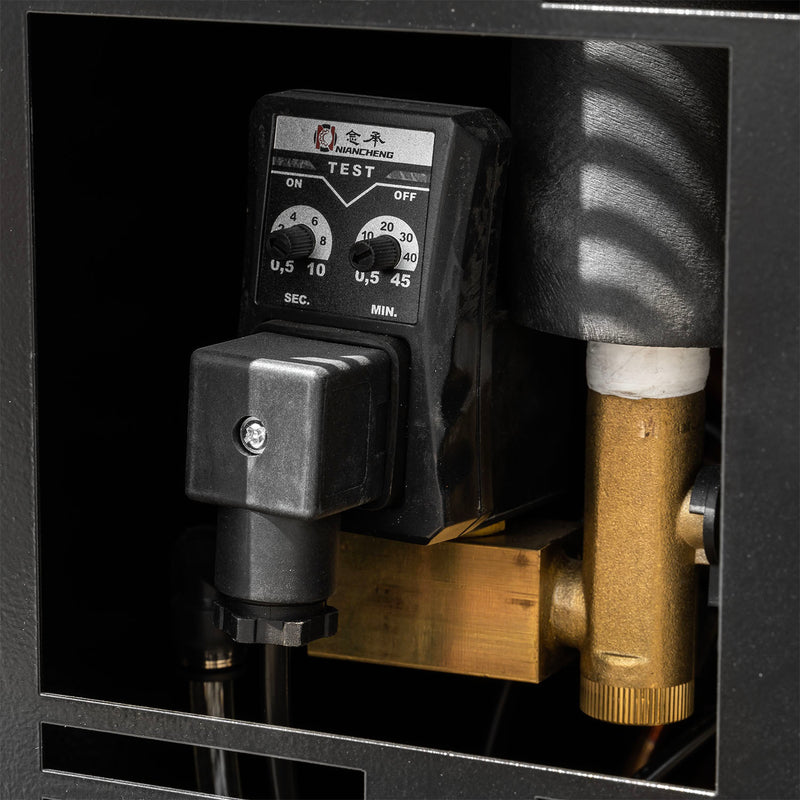

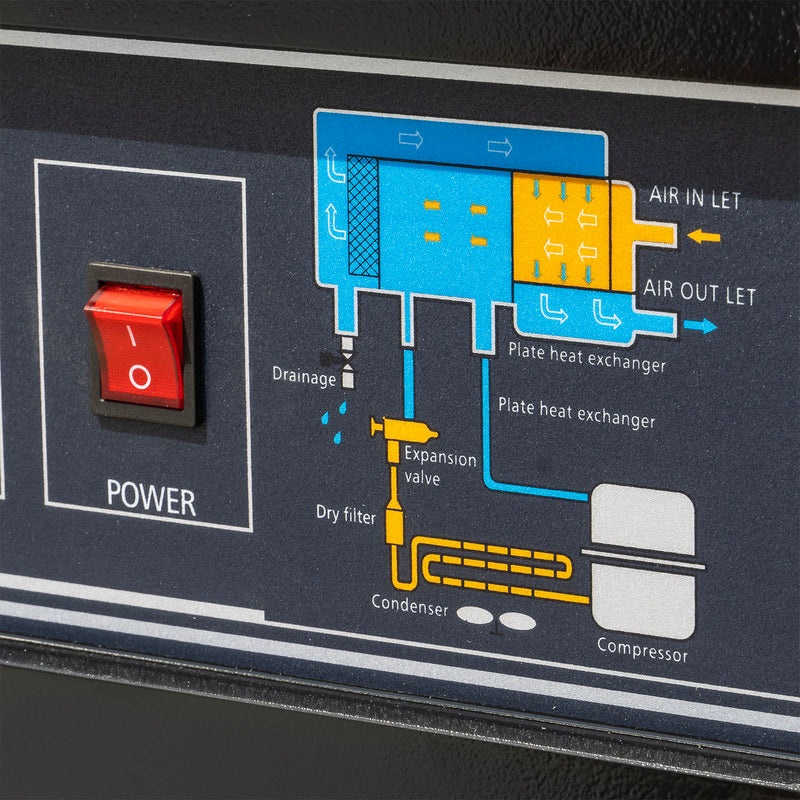

This Compressor Source Refrigerated Air Dryer is the perfect solution for getting moisture out of your air and keeping your tools running smoothly. This dryer uses R134a refrigerant which is highly effective at keeping the system cool and is more environmentally friendly when compared to alternatives such as R12. The dryer is designed to be used on compressors that can deliver up to 42.38 CFM, which are typically 7.5-10 HP air compressors, but it can be used on smaller compressors if desired. Also included on this dryer is an automatic timer drain, an electronic display that displays the dew point and error codes, and a ¾” NPT inlet and outlet for an easy hookup with your compressor. Please see below for more features and specifications.
Please Note: Due to the size, weight, and care needed to deliver this dryer safely, this item must be shipped on a pallet via a freight carrier to a commercial address. If you do not have a commercial address, additional residential shipping fees may be charged. Please contact us before purchasing if you have any questions or concerns about how this item will ship to you or if you would like us to verify your address with our freight carrier.
Features and Specifications
• Model Number: CSRD-40
• Max Working Pressure: 232 PSI
• Voltage: 110V
• Inlet Temperature: <149°F
• Max Flow Capacity: 42.38 CFM
• Dew Point: 35.6°F – 50°F
• Refrigerant: R134a
• Power: 0.5 HP
• Max Ambient Operating Temperature: <107.6°F
• Weight: 75 LBS
• Dimensions: 18.9” x 15” x 26.2”
