This listing is for a 5 horsepower, single-phase magnetic starter rated for 220–240 volts. Housed in a durable steel enclosure, this high-quality starter features a built-in overload relay adjustable from 22 to 34 amps to help protect your motor from overcurrent damage.

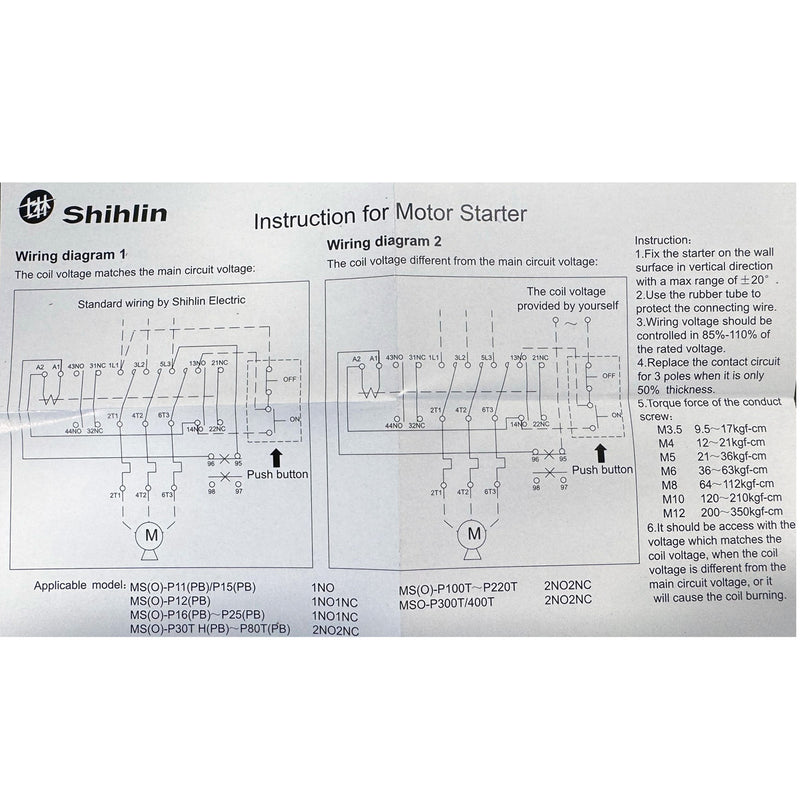

The unit includes a manual reset button, which can be switched to auto reset mode if needed. The enclosure is equipped with four 3/4" punch-out holes for wiring access and includes three rubber grommets to protect wires during installation. Wiring instructions are included for reference.
If you're running a 5 HP air compressor and experiencing burned-out pressure switch contacts, this magnetic starter is the solution. It offloads the electrical load from the pressure switch and improves reliability.
When used with an air compressor, a pressure switch (sold separately) is required to control the starter. The pressure switch will turn the starter on and off based on the tank pressure settings.
Imporant Notes:
- Professional installation is required.
- No warranty is offered once the item has been installed, due to the nature of electrical components.
Specifications:
- Motor Compatibility: 5 HP
- Voltage: 220–240V AC
- Phase: Single Phase
- Overload Protection: Adjustable from 22 to 34 Amps
- Reset Type: Manual (switchable to Auto)
- Enclosure Dimensions (H x W x D): 9" x 5.5" x 5.5"
- Includes: Three rubber grommets and wiring instructions
