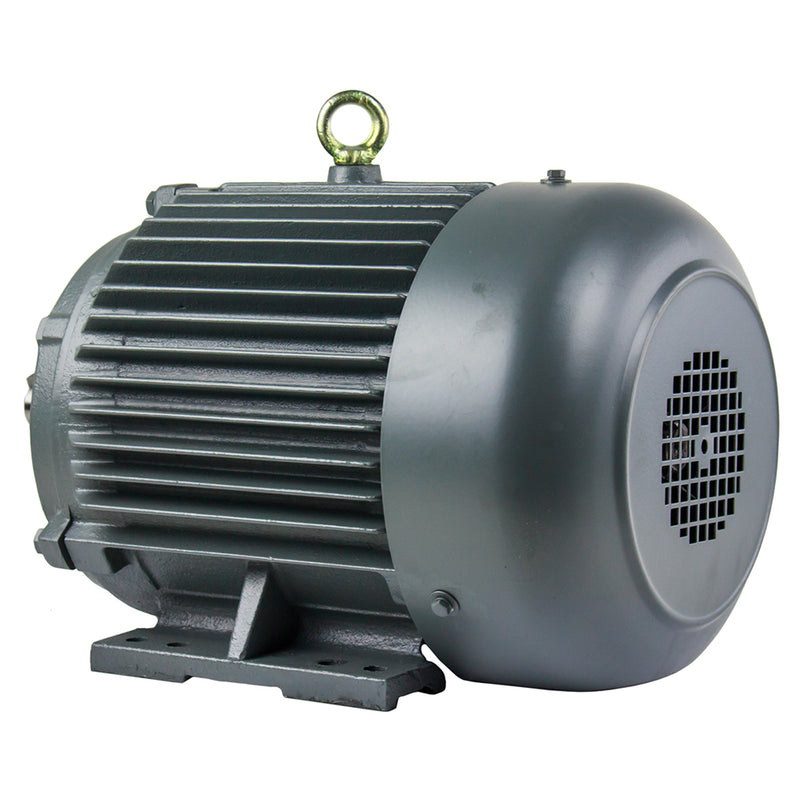

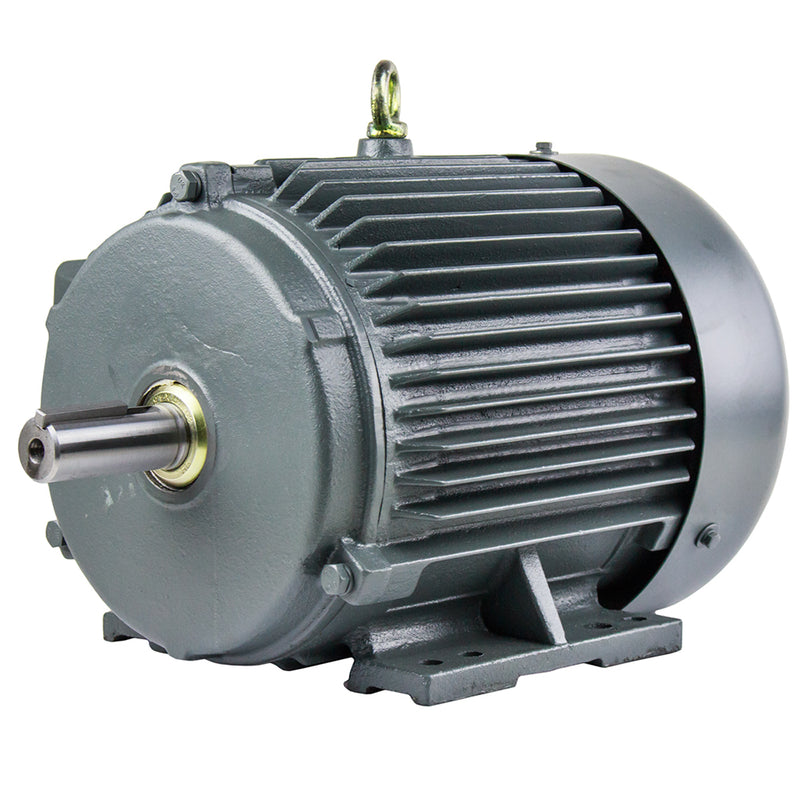

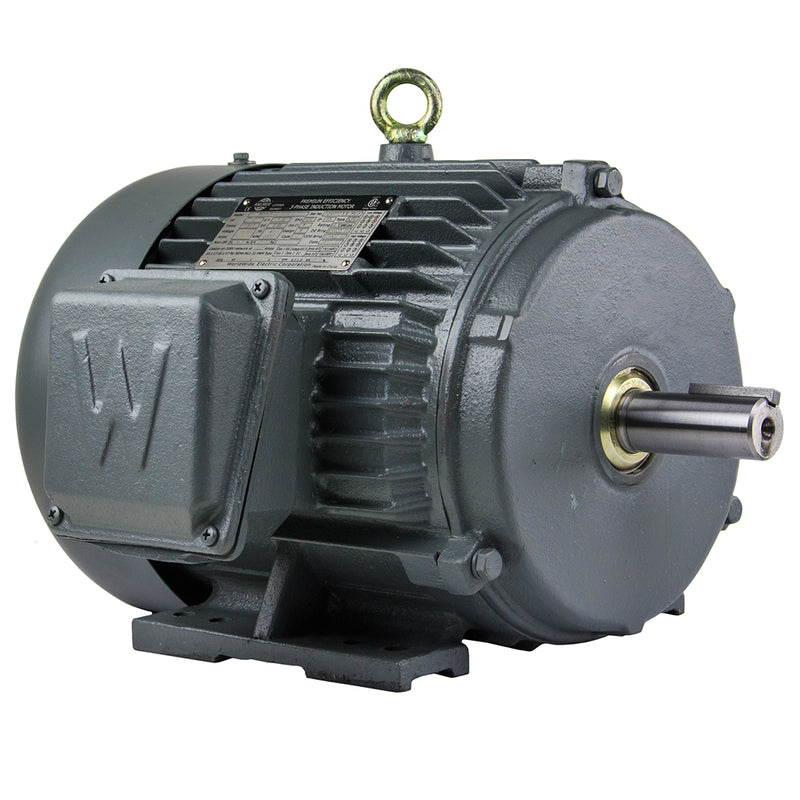

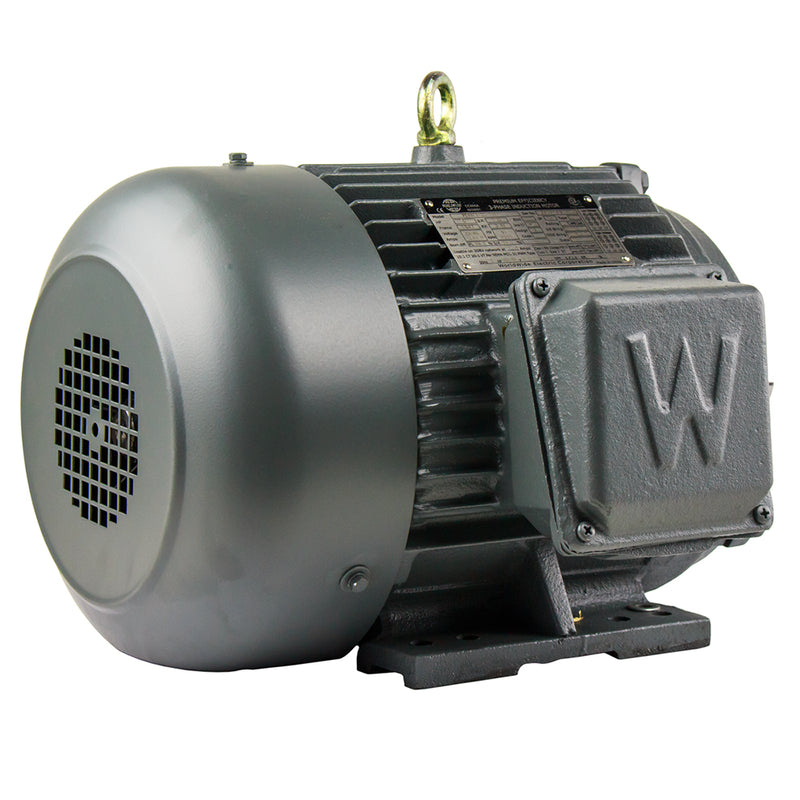

Brand New 5 horsepower, 3 phase premium efficiency severe duty electric motor with rigid base. Worldwide Electric designs and manufactures motors with quality and reliability in mind. This motor features Class F insulation, fan cooling, a 1.25 service factor, and is a premium efficiency motor. Designed for 60Hz also suitable for 50Hz operation with a 1.0 service factor. Features a TEFC / IP55 enclosure, and is a 184T frame.
TEFC / IP55 Fully Enclosed
Service Factor 1.25
Class F Insulation
Worldwide Electric Brand
Shaft Length: Approximately 2 7/8"

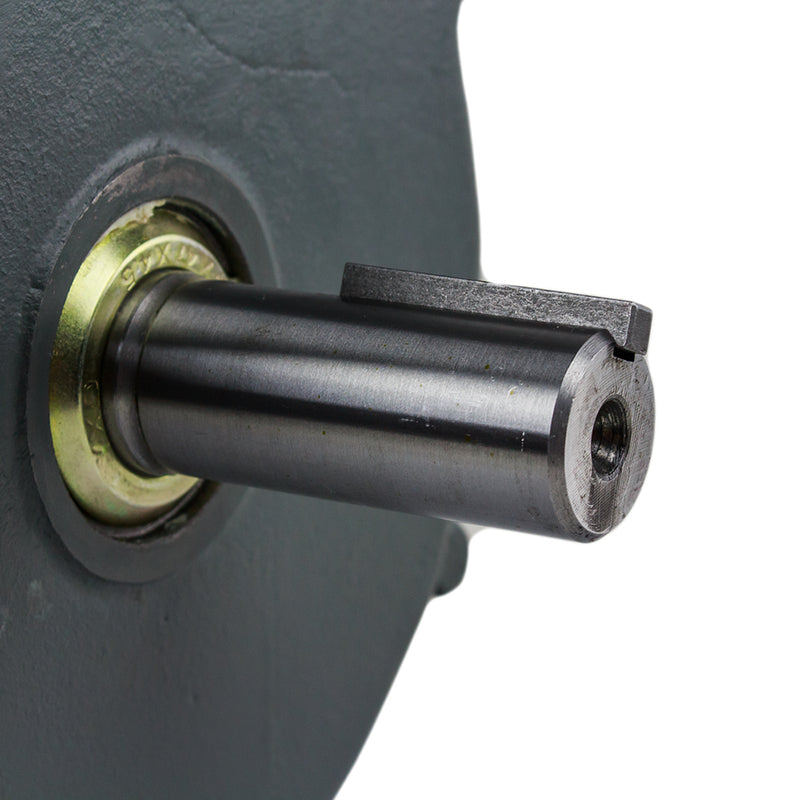

Keyed 1 1/8" Diameter Shaft
Full Load Amps: 12.0/6.01
60 HZ (Suitable for 50 HZ with 1.0 SF)
Shaft Material: 1045 Carbon Steel
Nema Design B
Max Temp: 40 Degrees C
