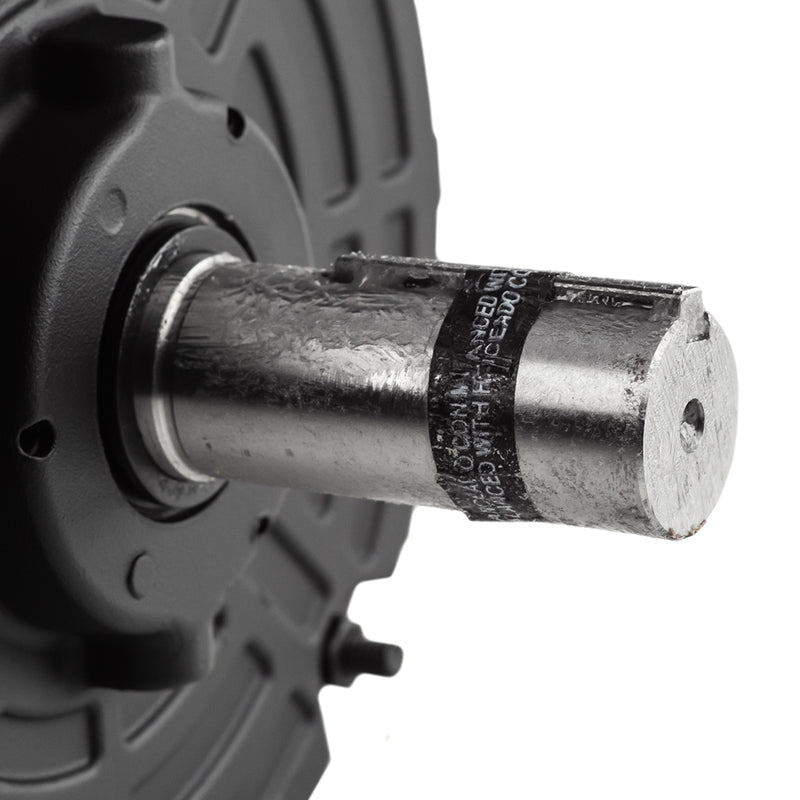

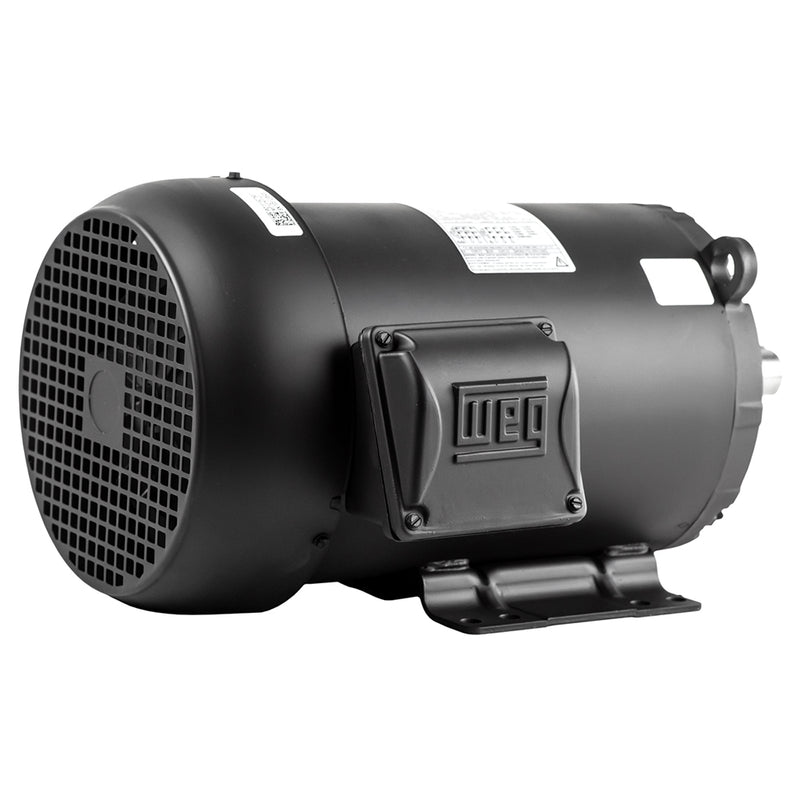

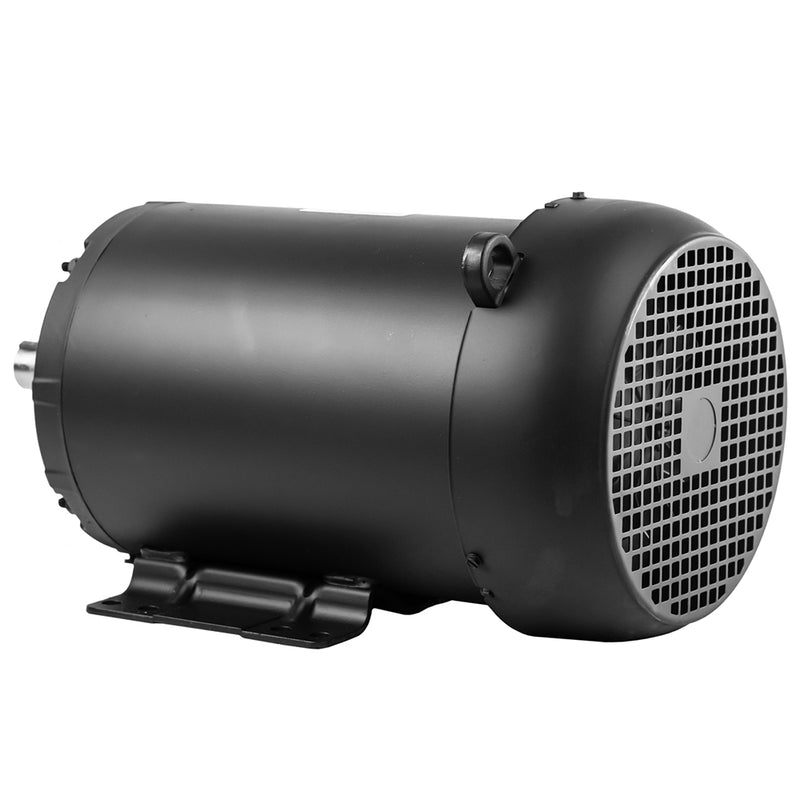

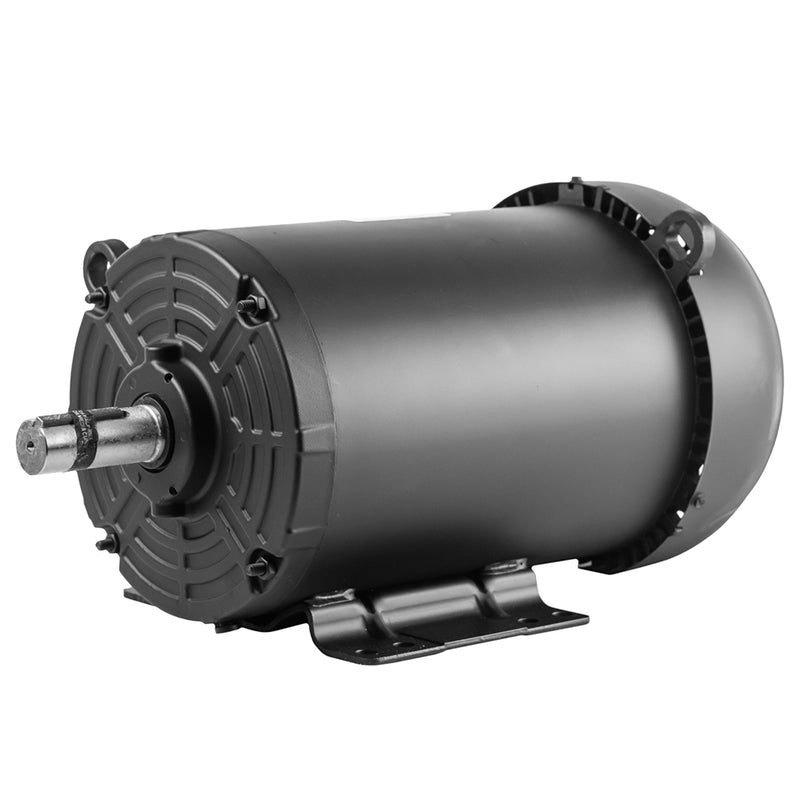

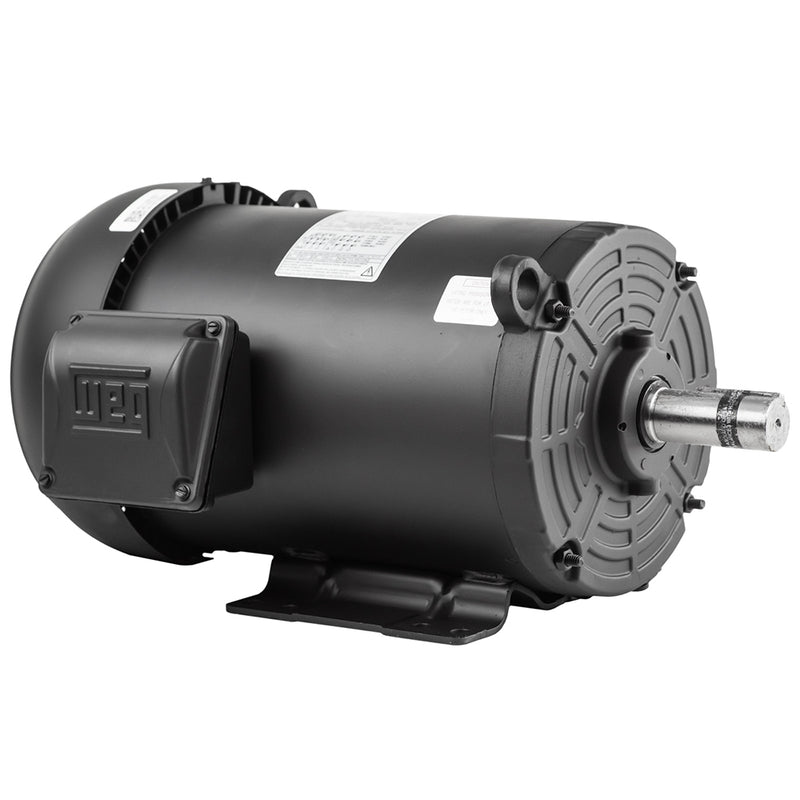

This listing is for a brand new WEG 5 horsepower air compressor motor model number 00536ET3E184T-S. This motor is 208-230/460 volt, 13.1-11.8/5.90 AMPS, 60 Hz, 182/184T Frame, three-phase, 1-1/8" diameter shaft, and 3500 RPM (works great as a replacement for 3500-3600 RPM). This motor can rotate in either direction. This can replace motors rated for different RPMs, you will just have to use a different sized pulley to make up the RPM difference on your compressor. If you have any questions about this motor or if it will work as a replacement on your air compressor feel free to contact us.
• Frame: 182/4T
• Output: 5 HP
• Number of Poles: 2
• Frequency: 60 Hz
• Rated Speed: 3500 RPM
• Slip: 2.78%
• Rated Voltage: 208-230/460 Volts
• Rated Current: 13.1-11.8/5.90 Amps
• Rated Torque: 7.40 ft. lb
• Locked Rotor Torque: 220%
• Breakdown Torque: 300%
• Locked Rotor Time: 30s (Cold) 17s (Hot)
• Design: B
• Insulation Class: F
• Service Factor: 1.15
• Temperature Rise: 80 K
• Duty Cycle: Cont.(S1)
• Starting Method: Direct On Line
• Ambient Temperature: -20°C to +40°C
• Altitude: 1000 m.a.s.l.
• Degree of Protection: IP55
• Enclosure: TEFC
• Rotation: CW and CCW
• Noise Level: 68.0dB
• Approx Weight: 81.1 lbs
"THIS MOTOR ONLY SHIPS TO THE CONTINENTAL 48 UNITED STATES"
This motor has a one-year limited manufacturer's warranty
We strive for 100% customer satisfaction! We take the time to package these motors extremely well to make sure they get to you in perfect condition.
If you have any questions about this motor, feel free to reach out to us.
