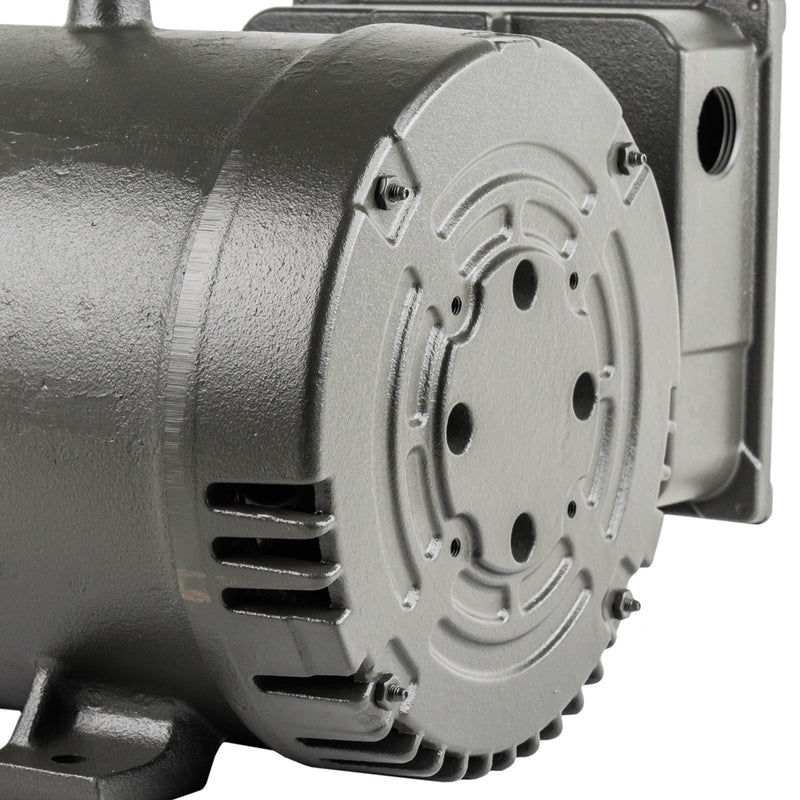

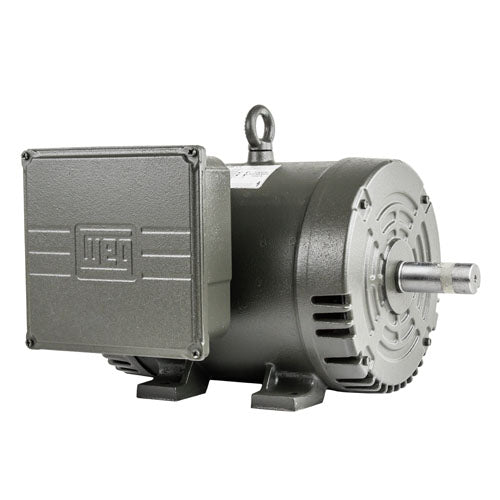

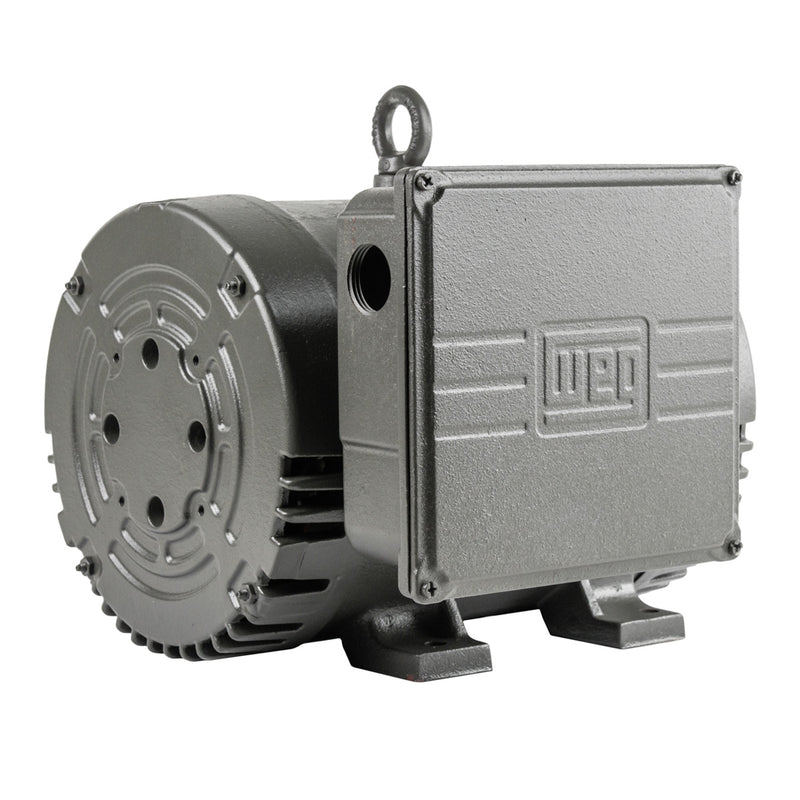

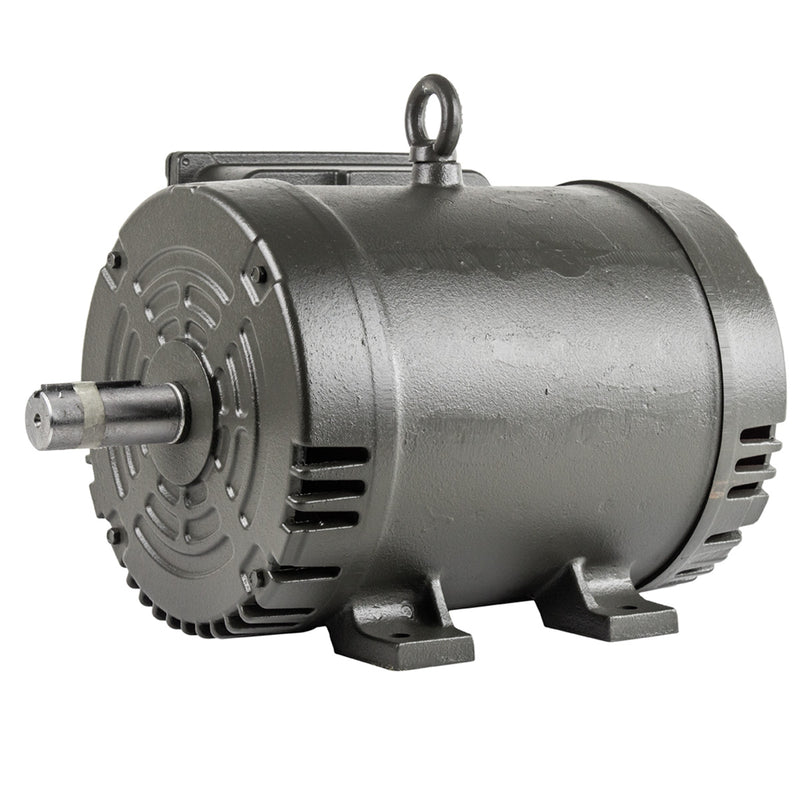

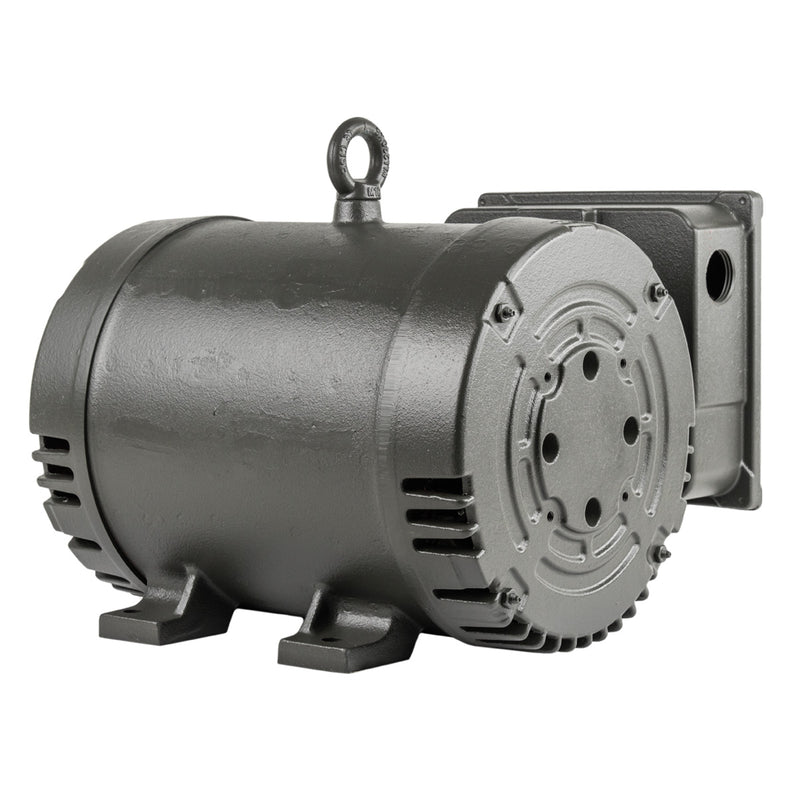

7.5 HP 184T Single Phase 3510 RPM WEG Electric Motor

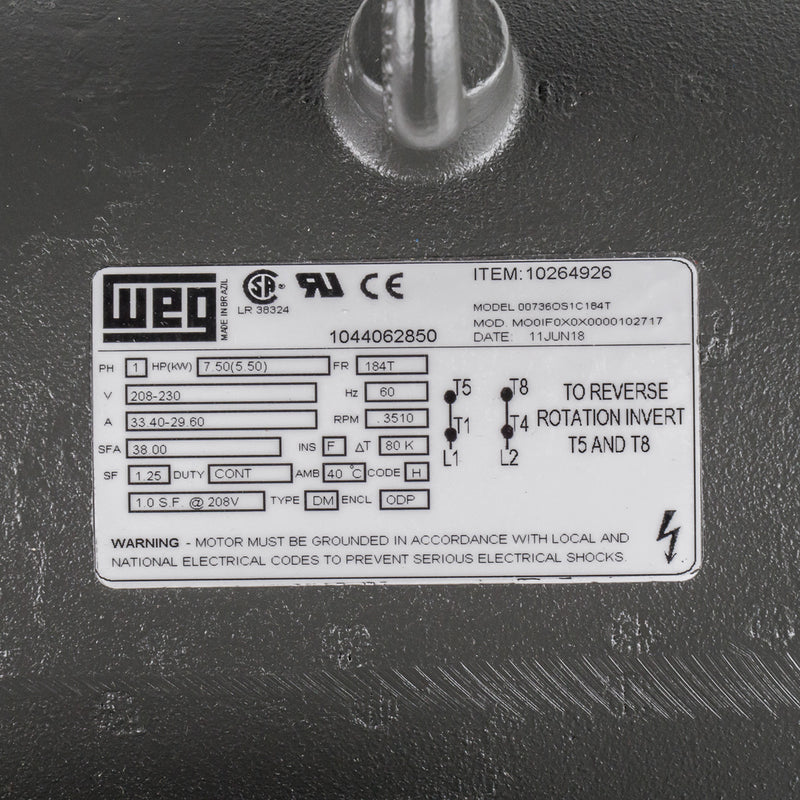

This listing is for a brand new WEG 7.5 horsepower air compressor motor model number 00736OS1C184T. This motor is 208-230 volt, 33.4-29.60 AMPS, 60 Hz, 184T Frame, single phase, 1-1/8" diameter shaft, and 3510 RPM. It is specifically designed for use with air compressors to meet start up load / torque specifications. This motor can rotate in either direction. This can replace replace motors rated for different RPMs, you will just have to use a different sized pulley to make up the RPM difference on your compressor. If you have any questions about this motor or if it will work as a replacement on your air compressor feel free to contact us.
• Frame: 184T
• Output: 7.5 HP
• Frequency: 60 Hz
• Rated Speed: 3510 RPM
• Rated Voltage: 208-230 Volts
• Rated Current: 33.40-29.60 Amps
• Insulation Class: F
• Service Factor: 1.25 (1.00 at 208 Volts)
• Enclosure: ODP
• Rotation: Both (CW and CCW)
• Approximate Shaft Length: 2-7/8"

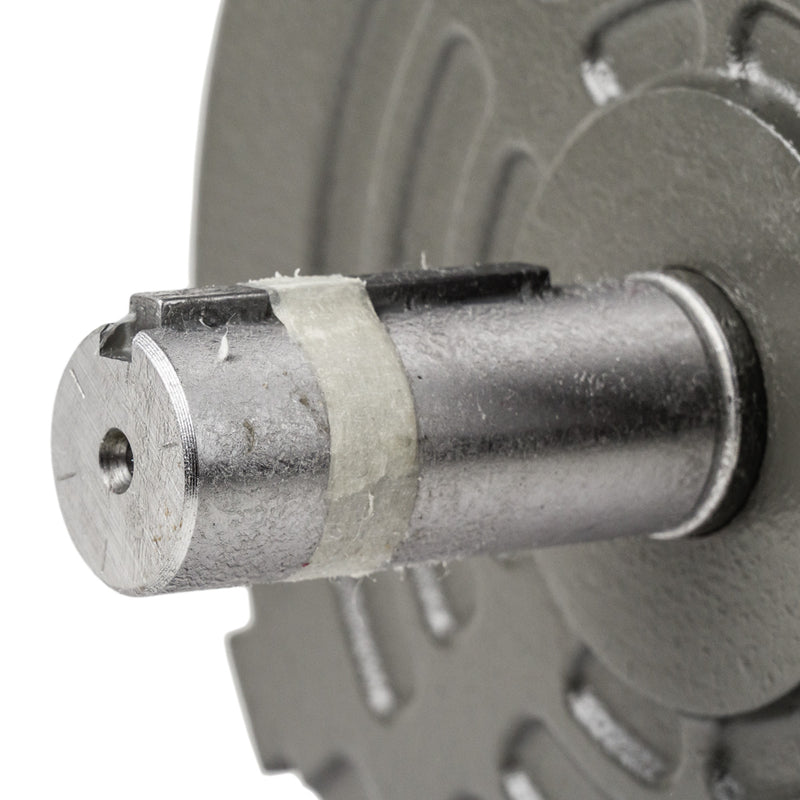

• Approximate Shaft Diameter: 1-1/8"
"THIS MOTOR ONLY SHIPS TO THE CONTINENTAL 48 UNITED STATES"
This motor has a one-year limited manufacturer's warranty
We strive for 100% customer satisfaction! We take the time to package these motors extremely well to make sure they get to you in perfect condition.
If you have any questions about this motor, feel free to reach out to us.
