Rolair H3130K18 30 Gallon 3 HP Stationary Air Compressor
Rolair's H3130K18 stationary air compressor features a 3 hp electric motor and single-stage splash lubricated pump that is paired up to a 30-gallon tank. This combination delivers 11.9 CFM @ 100 PSI and comes with a pre-set pressure switch at 110-135 PSI. For more features and specifications, please see below.
About the Pump
Single Stage, Cast-Iron Cylinders, Aluminum Head and Crankcase for Faster Heat Dissipation, Ball Bearings, Splash Lubricated, Bearing Inserts on Connecting Rods, Swedish Lamellar Reed Valves, Oil Sight Gauge, Low RPMs to Ensure Long Life and Trouble-Free Performance.
About the Motor
3450 RPM, 60 Hz, Open Drip-Proof Motor, Single Phase
• Pressure Switch - Start/Stop Operation,110-135 PSI Settings, On/Off Switch
• Automatic Unloading Device for Loadless Starts
• Heavy-Duty Brass Shut-Off Valve
• Pressure Gauge, 0-200 PSI in 5 lb. Graduations
• Safety Relief Valve - ASME Approved
• Multiple V-Belt Drive
• Intake Filter/Silencer with Replaceable Element
• Totally Enclosed Steel Belt Guard
• Horsepower: 3
• CFM Displaced: 13.8 CFM
• CFM Delivered: 11.9 CFM @ 100 PSI
• Lubrication Type: Splash Lubrication
• Number of Cylinders: 2
• Tank Capacity: 30 Gallons
• Dimensions L x W x H: 42" x 20" x 38"

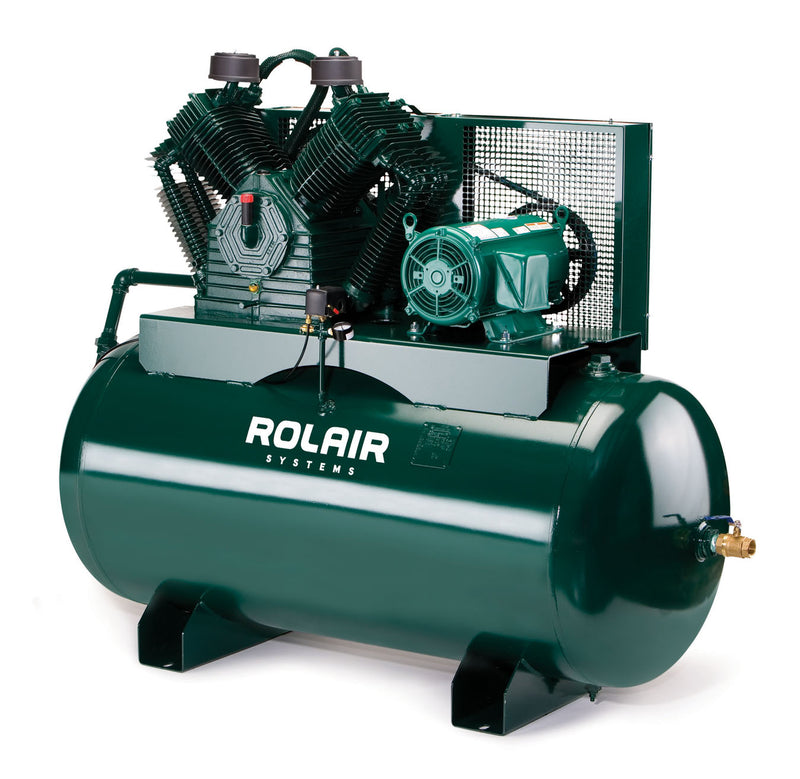

Note: The air compressor pictured is from the manufacturer's website and is not the actual air compressor listed. The design will be similar but may have a few changes depending on the air compressor options. If you have questions, please ask us, and we can go over any differences that there might be.
