Rolair H3330K24 30 Gallon 3 HP Three Phase Horizontal Stationary Air Compressor
Rolair's H3330K24 stationary air compressor features a 3 hp electric motor and two-stage splash lubricated pump that is paired up to a 30-gallon tank. This combination delivers 10.7 @ 175 PSI and comes with a pre-set pressure switch at 145-175 PSI. For more features and specifications, please see below.
About the Pump
Two-Stage, Cast-Iron Cylinders, Aluminum Head and Crankcase for Faster Heat Dissipation, Ball Bearings, Splash Lubricated, Bearing Inserts on Connecting Rods, Swedish Lamellar Reed Valves, Oil Sight Gauge, Low RPMs to Ensure Long Life and Trouble-Free Performance.
About the Motor
1740 RPM, 60 Hz, Open Drip-Proof Motor, Three Phase
Pressure Switch - Start/Stop Operation,145-175 PSI Settings, On/Off Switch
Automatic Unloading Device for Loadless Starts
Heavy-Duty Brass Shut-Off Valve
Pressure Gauge, 0-300 PSI in 5 lb. Graduations
Safety Relief Valve - ASME Approved
Multiple V-Belt Drive
Intake Filter/Silencer with Replaceable Element
Totally Enclosed Steel Belt Guard
• Horsepower: 3
• CFM Displaced: 14.6 CFM
• CFM Delivered: 10.7 CFM @ 175 PSI
• Lubrication Type: Splash Lubrication
• Tank Capacity: 30 Gallons
• Dimensions L x W x H: 42" x 20" x 39"

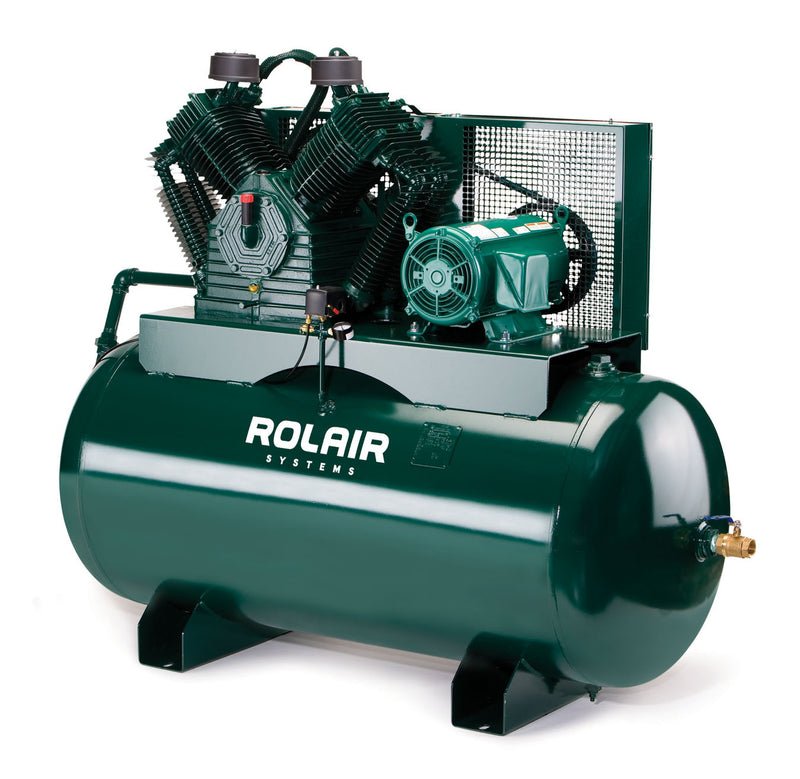

Note: The air compressor pictured is a stock photo from the manufacturer's website and is not the actual air compressor listed. If you have questions, please ask us, and we can go over any differences that there might be.
